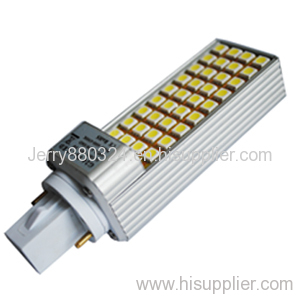

CE&RoHS PLC G24 LED downlight SL-PLC-G24-8 manufacturer from China Sinolumi LED Limited.

Product Detail

Model No.: SL-PLC-G24-8

Production Capacity: 10000 pcs per month

Delivery Date: 10-15 days upon receipt of ...

Correlated Color Temperature: Others

Light: Others

Lamp Holder/Base: Others

Brand Name: Sinolumi

Light source: 36 pcs 5050 High brightness...

CRI: >75

Beam angle: >120

Means of Transport: Air

Packing: normal package or according...

Input Voltage: Others

Shape: Others

Material: Others

Lamp Holder: Others

Power consumption: 8W(allow 10% difference)

Power factor: >0.9

Lumen: 660LM(allow 10% difference)

Color range: White/Pure white/Warm white

CE&RoHS PLC G24 LED downlight 8W
1.660LM output
2.8W power consumption
3.White/Pure white/Warm white
4.Beam angle>120
5.CRI>75

Features:

Aluminum heat dissipation socket with oxidized surface treatment.
High efficiency heat inductive aluminum printed circuit board for LED.
CE standard power supply with PF>0.9. The constant IC allows for 80℃ to prevent potential risk and support to AC 400V shock.
Anti-fire and Anti-High voltage PBT material for lighting base.
It is used to replace 24-26W in down lighting fixtures as lighting source.
It is used inside a lamp holder at the size of 5″ or bigger(120mm Diameter or bigger)
It is made to be adjustable at 270° by itself

Electrical Specifications:

Operation Voltage: AC100V-250V

Power Consumption: 8W±10%

Power Factor: >0.9

Light Source: 36Pcs 5050 High brightness LED

Operation Temperature: -30℃--+40℃.

Physical Specifications:

Base: G24d-1, G24d-2, G24d-3, G24q-1, G24q-2, G24q-3

Dimension: L116*H35mm

Housing: Aluminium and ABS anti-fire

Work environment: Indoor use, applicable for dry environment

Optical Specifications:
